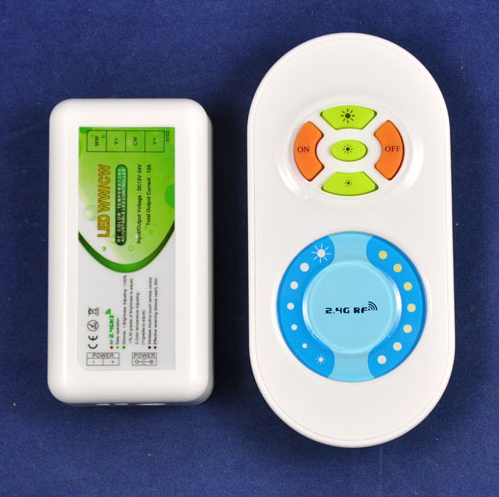

This five-key (button) touch controller is a small wireless controller that adopts high-precision capacitance technology, you can select the color you need with one button. It is convenient and easy, used to control a variety of lamps whose light source is LED, such as flexible strips, wall washers, modules, etc. According to customers' actual need, it can realize random changing, gradual changing, strobe flash and other changing effects.

How does it work?

• Plug in the charging cable first, followed by the power cable . Make sure that a short circuit cannot occur between the cables before turning on the power.

• The power supply range is DC 12-24V, please do not use more than the voltage range , otherwise the driver will be burned.

• If the touch remote control will not be used for a long period of time, we suggest that you remove the batteries (batteries) first.

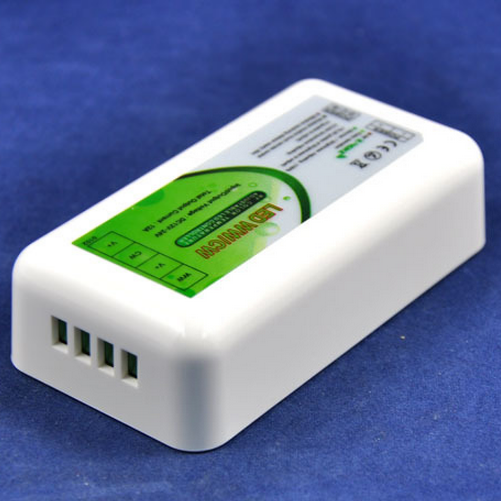

Terminal description:

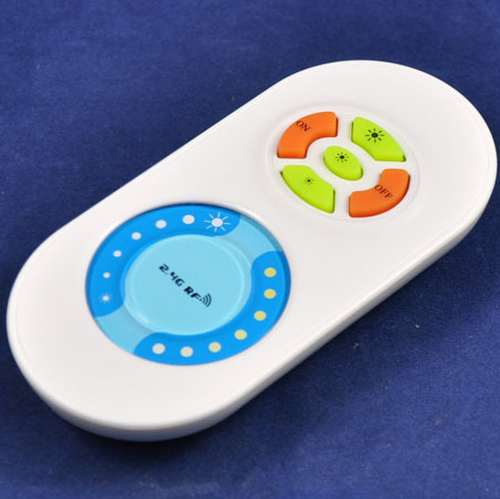

How does the remote control work?

• On Button | Off:  You can turn on/off the controller output in any state.

• Mode Button : Used to switch mode of the controller.

• White light switch button: used to switch white light and full color light.

• Brightness increase button | Speed : You can adjust the brightness in static mode (25 levels) and adjust the speed in dynamic mode (100 levels).

• Brightness reduction button | Speed : You can adjust the brightness in static mode (25 levels) and adjust the speed in dynamic mode (100 levels).

• Static mode selection button : up to 55 touch points. Used to select the color indicated by the color ring.

• Power supply management: When the remote control is not used for more than 15-20s, the remote control will enter a standby state to extend battery life. The color ring cannot be used during this state, please shake it slightly once, then the remote control will return to normal working state.
